AES/EBU Multicore Cables

AES3 (also known as AES/EBU) is a standard for the exchange of digital audio signals between professional audio devices. AES3 was jointly developed by the Audio Engineering Society (AES) and the European Broadcasting Union (EBU). An AES3 signal can carry two channels of PCM audio over several transmission media including balanced lines, unbalanced lines, and optical fiber. The standard was first published in 1985 and has been revised in 1992 and 2003.

AES3 has been incorporated into the International Electrotechnical Commission’s standard IEC 60958, and is available in a consumer-grade variant known as S/PDIF.

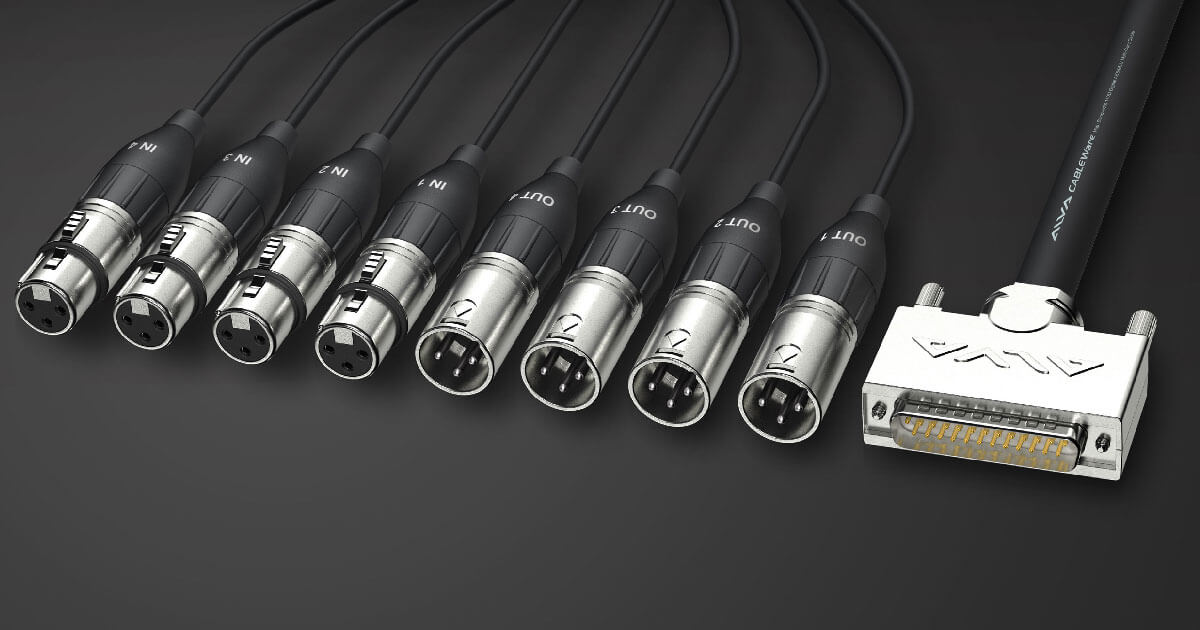

D-Sub25 male to 8 x XLR

D-Sub25 male to 8 x XLR female

Available Lengths
1 m (3.3 ft.)
Part No. AES25-4F4MPro1

3 m (9.8 ft.)
Part No. AES25-4F4MPro3

5 m (16.4 ft.)
Part No. AES25-4F4MPro5

- 192 kHz ready
- Cable Color: black
- Impedance: 110 Ohm
- Numbered XLR fan-out
- D-sub: 25-pin male, UNC 4/40 thread
- Cable Ø: 14 mm

Buy now

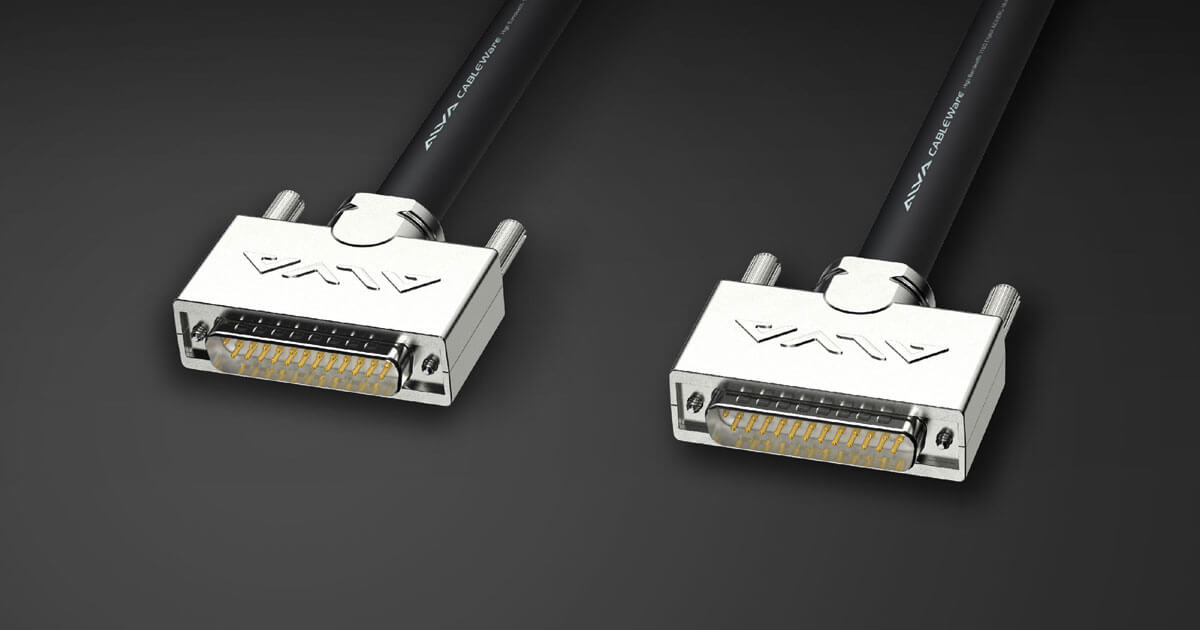

D-Sub25 to D-Sub25

D-Sub25 to D-Sub25

Available Lengths
1 m (3.3 ft.)
Part No. AES25T-25TPro1

3 m (9.8 ft.)
Part No. AES25T-25TPro3

5 m (16.4 ft.)
Part No. AES25T-25TPro5

- 192 kHz ready
- Cable Color: black
- Impedance: 110 Ohm
- Cross-Cable (input to output and vice versa)
- 25-pin AES/EBU
  with TASCAM pin-out format and UNC 4/40 thread
- Cable Ø: 14 mm

Buy now

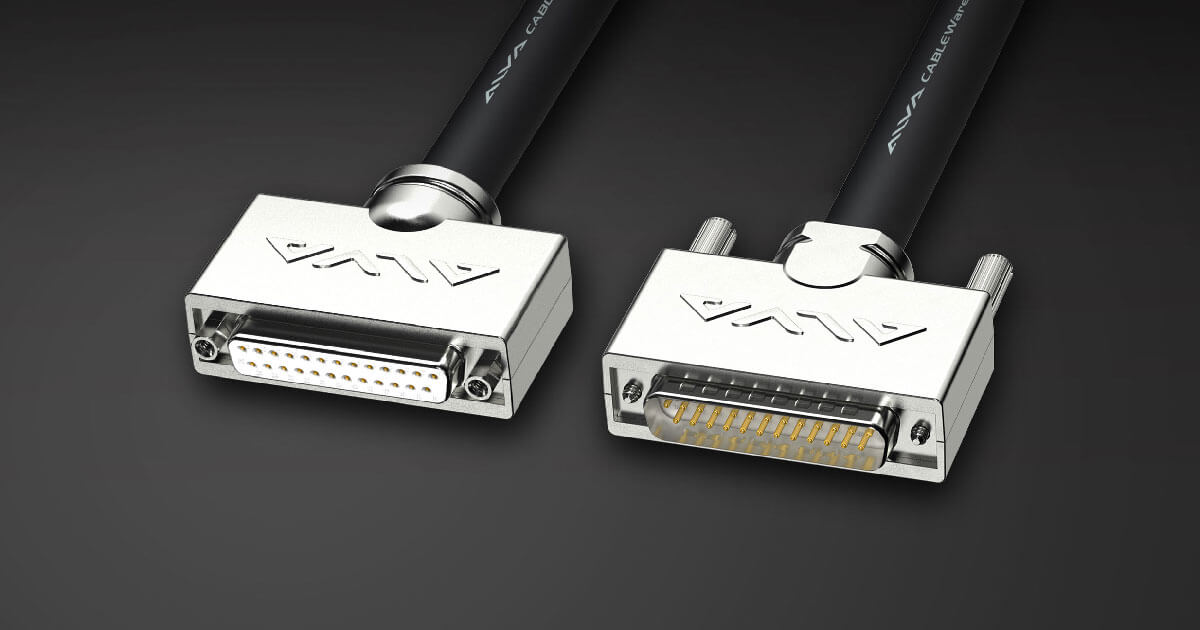

D-Sub25: YAMAHA <> TASCAM format

D-Sub25: YAMAHA <> TASCAM format

Available Lengths
0.5 m (1.6 ft.) = Part No. AES25Y-25TPro05

- D-Sub: 25-pin male to 25-pin female AES cable 0.5 m (1.6 ft.)
- Thread: UNC 4/40 > M 2.6 (metric)

Buy now

D-Sub25: TASCAM <> YAMAHA format

D-Sub25: TASCAM <> YAMAHA format

Available Lengths
0.5 m (1.6 ft.) = Part No. AAES25T-25YPro05

- D-Sub: 25-pin male to 25-pin female AES cable 0.5 m (1.6 ft.)
- Thread: UNC 4/40 > M 2.6 (metric)
