HDSP 9632
32-Channel PCI Card with Multi-Format I/O
RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true.

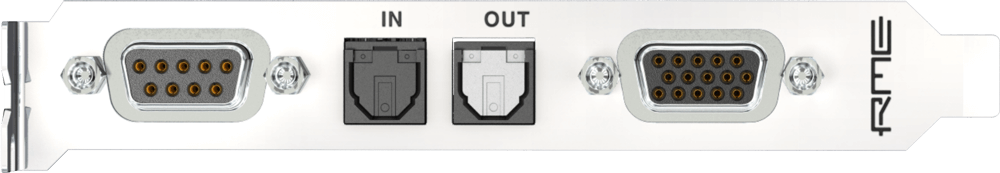

Connectivity and Features
1 x Stereo Analog I/O
1 x ADAT I/O
1 x SPDIF I/O
1 x Phones Output
1 x MIDI I/O
ARC USB
TotalMix FX
DC-coupled Outputs (Phones)
As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix FX, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long. A PCI Express version (HDSPe AIO) is available.
Features
The HDSP 9632 provides unique features:
- Balanced stereo analog in- and output, 24-Bit/192kHz, > 110 dB SNR
- Optional analog expansion boards with 4 balanced in- or outputs
- All analog I/Os capable of 192 kHz, constant number of available channels
- 1 ADAT digital I/O, supporting 96 kHz S/MUX operation
- 1 SPDIF digital I/O, 192 kHz-capable
- 1 Breakout cable for coaxial SPDIF*
- Up to 16 I/Os can be used simultaneously!
- 1 Stereo headphone output, parallel to the analog out, additional level settings
- 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
- DIGICheck, RMEs unique metering- and analysing tool
- HDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware
- TotalMix: 512 channel Mixer with 40 Bit internal resolution
* The HDSP 9632 ships in a basic version including two RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os and the SPDIF I/O are unbalanced. XLR breakout cables are available as an option (headphone: Neutrik TRS locking jack), turning analog and AES/EBU into balanced mode.
HDSP 9632 debuts SteadyClock (TM), a newly developed clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
Compared to the well-known DIGI96/8 series, the HDSP 9632 not only offers a further improved analog interface, but also all the features of the award-winning Hammerfall DSP series: All inputs and outputs simultaneously available, MIDI I/O and TotalMix, the DSP-based real-time mixer/router. Hardware updates through software and driver updates are risk-free thanks to the Secure BIOS Technology.
In short: The HDSP 9632 is the ultimate audio interface for PC or Mac, digital or analog.
Accessories
- HDSP 9632: Analog breakout cable, balanced (BO9632XLRMKH)
- HDSP 9632: Analog breakout cable, unbalanced (BO9632CMKH)
- HDSP 9632: Digital breakout cable, SPDIF (BO9632)
- HDSP 9632: Digital breakout cable, AES/EBU & SPDIF (BO968)

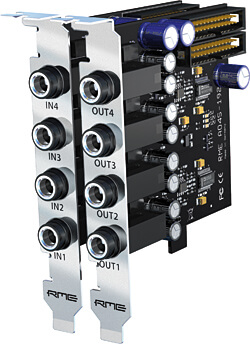

AI4S-192 AIO and AO4S-192 AIO: 4-Channel analog I/O modules with 192 kHz support
Works with: HDSPe AIO, HDSP 9632
These options for the HDSP 9632 and HDSPe AIO are analog expansion boards, designed as bracket with 4 stereo TRS jacks each. AI4S-192 AIO provides four servo-balanced inputs, AO4S-192 AIO provides four servo-balanced outputs. With this a maximum of 6 (including the stereo I/O of the card) inputs and/or outputs can be achieved.
The converters offer the same performance as the on-board stereo analog I/O of the HDSPe AIO: up to 192 kHz, balanced connection and the choice of three different reference levels, selected in the Settings dialog.
Both modules can be used single or in combination. The display of the channels in TotalMix changes accordingly.
Note: AI4S-192 and AO4S-192 (without the suffix AIO) do work only with the HDSP 9632. The current Expansion Boards with the suffix AIO work with both cards.
More information can be found in the manuals:
Manual AI4S-192 AIO
Manual AO4S-192 AIO

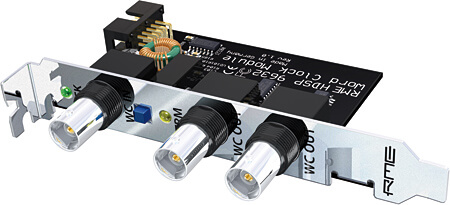

Word Clock Module (WCM)
Works with: HDSPe RayDAT, HDSPe AIO, HDSP 9632
The Word Clock Module (WCM) provides a galvanically isolated word clock input and two word clock outputs (BNC connectors). Both outputs have their own driver stages, providing an extremely low jitter signal. A push switch activates 75 Ohms termination for the hi-impedance input. SteadyClock, part of the PCI card, guarantees an excellent performance in all clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal, and provides it as reference clock at the two outputs.
Installation is done in a convenient manner using the supplied bracket. No PCI slot on the motherboard is required. The module is internally connected via a 10-pin connector and a flat ribbon cable to the PCI card. Thanks to several LEDs (power, termination, LOCK) and the highly integrated concept of installation, first operation and usage are simple even for the inexperienced user.
More information can be found in the HDSP 9632 WCM manual.
TDIF Expansion: HDSP 9632 supports also the TEB TDIF-I/O-Module (no longer available).
Expansion Boards Optional analog and digital I/Os.
Specs
HDSP 9632
- Supported sample frequencies: Internally 32, 44.1, 48, 64, 88.2, 96, 176.4, 192 kHz. Externally 28 kHz - 200 kHz
- 8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms
- All settings changeable in real-time
- Automatic and intelligent master/slave clock control
- Enhanced Mixed mode: All inputs and outputs simultaneously operational
- TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode
- Unique status windows for record and playback, showing mode and sample rate
- DIGICheck, RMEs unique metering and analysing tool
- Digital inputs and outputs ground-free transformer coupled
- 3-stage hardware level control for analog inputs and outputs
- Balanced analog input and output, DC-coupled signal path
- 192 kHz / 24-Bit converters. SNR 110 dB RMS unweighted, 113 dBA
- Maximum input and output level (0 dBFS @ HiGain): +19 dBu
- Low impedance headphone output (75 ohm), stepless output level through software faders
- Headphone Speaker Protection minimizes noise during power on/off
- All inputs and outputs simultaneously operational
- Super low jitter design: < 1 ns in all clock modes
Drivers
HDSP 9632
UpdatesPCI and CardBus card to hardware revision 17/55 HDSP 9652 to 108, HDSP 9632 to 155, HDSP MADI to 207 and AES-32 to 234. Flash Update Tool for Windows 2000/XP/Vista/7/8/10.
Attention: Users of HDSP PCI Rev. < 1.8 and the flat HDSP CardBus (15-pin connector) please carefully study the included readme before performing the flash update
Also supports HDSPe PCI Card and ExpressCard with Digiface, Multiface and RPM. Version 1.73. See readme.txt for important notes!
UpdatesPCI and CardBus card to hardware revision 17/55 HDSP 9652 to 108, HDSP 9632 to 155, HDSP MADI to 207 and AES-32 to 234. Flash Update Tool for Windows 2000/XP/Vista/7/8/10.
Attention: Users of HDSP PCI Rev. < 1.8 and the flat HDSP CardBus (15-pin connector) please carefully study the included readme before performing the flash update
WDM, WDM-KS and ASIO. Version 4.43. Windows XP SP3 / 8/10/11, not Windows 7. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
WDM, WDM-KS and ASIO. Version 4.43. Windows XP SP3 / 8/10/11, not Windows 7. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
WDM, WDM-KS and ASIO. Version 4.36. Windows XP SP3 / 7/8/10. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
WDM, WDM-KS and ASIO. Version 4.43. Windows XP SP3 / 8/10/11, not Windows 7. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
WDM, WDM-KS and ASIO. Version 4.43. Windows XP SP3 / 8/10/11, not Windows 7. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
WDM, WDM-KS and ASIO. Version 4.36. Windows XP SP3 / 7/8/10. Supports all HDSP and HDSPe cards/systems except HDSPe MADI FX.
TotalMix Remote V 1.30 - App to remote control TotalMix FX via ethernet and WiFi from other devices with Mac OS 10.12 or up. Universal Binary, supports Intel and Mx. Please note: can not be run on the same computer where the host TotalMix FX is used. This download is not TotalMix FX, which is part of the driver installation.
TotalMix Remote V 1.30 - Program to remote control TotalMix FX via ethernet and WiFi from other devices with Windows OS (PC, Tablet). Please note: can not be run on the same computer where the host TotalMix FX is used. This download is not TotalMix FX, which is part of the driver installation.
Differences to v 4.53: EBU R-128 Meter. Surround Audio Scope with ITU weighting. Simultaneous usage of multiple cards in all functions. Displays fully configurable (e.g. channel selection). Multichannel Level Meter freely configurable. MMCSS for Vista. Many improvements on surface and internal operation. Supports all current interfaces plus DIGI 9636/52. DIGI32 series and DIGI96 series are no longer supported. (10/05/2020).
V596 adds compatibilty for HDSPe MADI FX and XT with DK firmware.
Stereo Level Meter, Multichannel Level Meter, Global Level Meter, Spectral Analyser, Vector Audio Scope, Correlation Meter, Totalyser, Bit Statistic & Noise, Global Record. ASIO support, multi-client operation, display of +dBFS levels, display of playback data, K-system, free reference/scale, third colour. New: Hardware Level Meter. RMS Slow and RLB weighting filter. Optional Correlator. Level meters vertical/horizontal. Presets with hotkeys. Support for Fireface 400, newer Fireface 800 drivers, HDSP series WDM driver. Record functionality Global Record. Compatible to HDSPe PCI and HDSPe MADI/MADIface
Stereo Level Meter, Multichannel Level Meter, Global Level Meter, Spectral Analyser, Vector Audio Scope, Correlation Meter, Totalyser, Bit Statistic & Noise, Global Record. ASIO support, multi-client operation, display of +dBFS levels, display of playback data, K-system, free reference/scale, third colour. New: Hardware Level Meter. RMS Slow and RLB weighting filter. Optional Correlator. Level meters vertical/horizontal. Presets with hotkeys. Support for Fireface 400, newer Fireface 800 drivers, HDSP series WDM driver. Record functionality Global Record. Compatible to HDSPe PCI and HDSPe MADI/MADIface
DIGICheck for Windows 98/ME/NT/2000/XP, Version 2.90 from 4.12.01
